64 inch double needle industrial Quilting Machine

double needle 64 inch Quilting Machine
Availability:
Quantity:
Inquire

  • YBD64

a

Product Model
 YBD70'' YBD70'' YBD70'' YBD66''
The Needle Distance Between Two Rows 76.2mm 152.4mm 76.2mm 45mm
Needle gap 50.8mm 50.8mm 76.2mm 38.1mm
Maximum travel in the X-axis direction 254mm 304mm 254mm 254mm
Working Width 1770mm 1770mm 1770mm 1670mm
Stich Step 2mm-12mm 2mm-8mm 2mm-8mm 2mm-8mm
Speed 600-750 R.P.M 600-750 R.P.M 600-750 R.P.M 600-750 R.P.M
Needle Size 12*-19* 12*-19* 12*-19* 12*-19*
Voltage AC220/380V.50Hz AC220/380V.50Hz AC220/380V.50Hz AC220/380V.50Hz

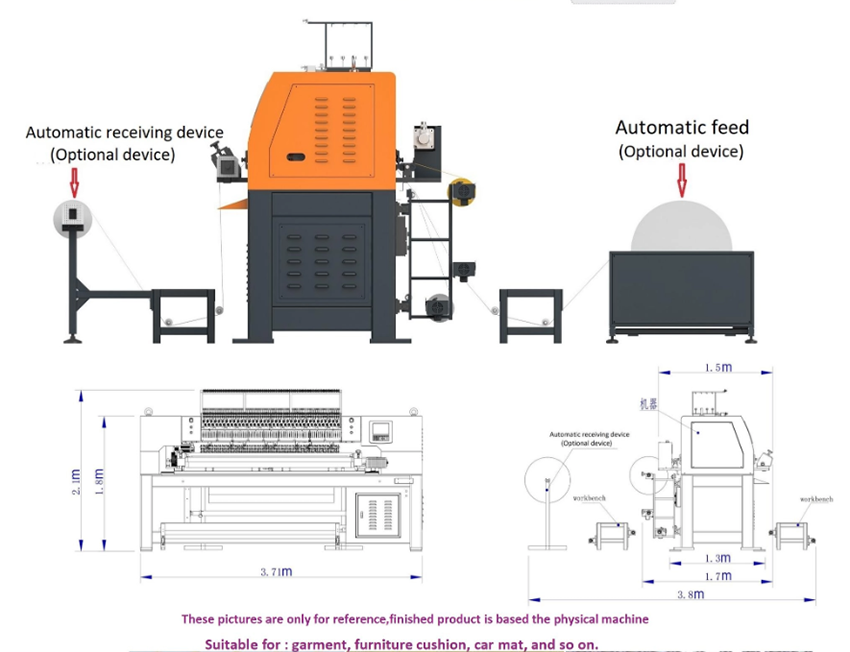

Machine Size L3700*W1500*H2100(mm) L3700*W1500*H2100(mm) L3700*W1500*H2100(mm) L3700*W1500*H2100(mm)

b

c

d

e

514389_公司介绍---副本111

Previous:
Next:
industrial Quilting Machine 64 inch Quilting Machine Manufacturer Quilting and Embroidery Integrated Machine 64 inch Quilting Machine industrial 64 inch Quilting Machine double needle 64 inch Quilting Machine double needle Quilting Machine industrial double needle 64 inch Quilting Machine industrial double needle Quilting Machine Quilted embroidery machine supplier
