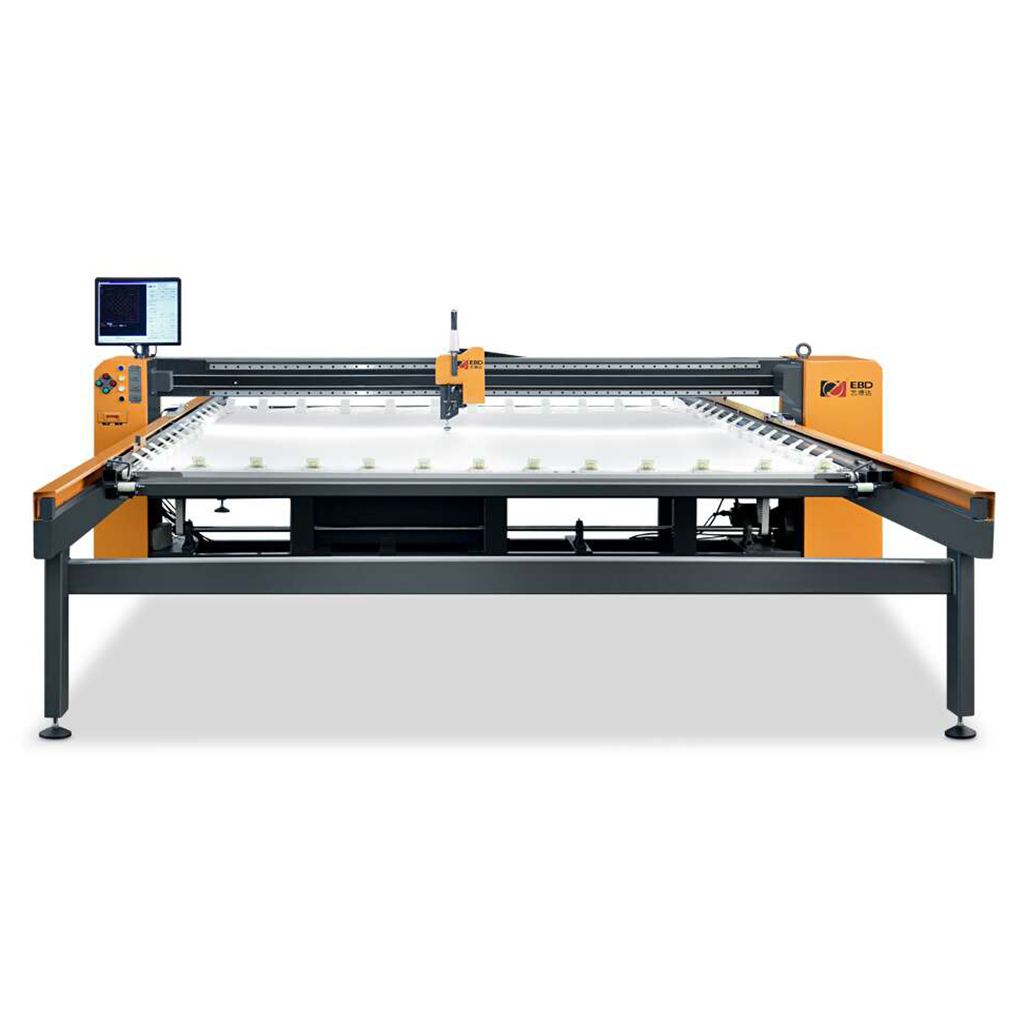

X-26
EBD
Application
Quilting process for home textile products such as quilts, comforters, mattress, mattress protector, blanket, sleeping bag, single needle art quilts, etc.
Features
· GetonAgain quilting head, independent presser foot drive, suitable for various of material with different thickness.
· Automatic lifting head, easily change the frame after finishing quilting
· Working speed up to 3000 rpm.
· The extendable quilting frame can be freely adjusted according to required size.
· High precision frame processing ensures stable needle & hook clearance and longer service lifetime of rotary hook.
· Original international brand large rotary hook and bobbin case.
· Automatic thread broken detection function, the machine will stop after thread broken and return to disconnection point to continue quilting after manually threading.
· Full servo motor control, providing powerful and accurate driving force
Models
| Models | Machine Installation Size (L×W×H) (mm) | Max. Quilting Fabric Size (mm) | Max. Quilting Size (mm) |
| X-26 | 5000×3400×1800 | 2600×2800 | 2400×2600 |
| X-28 | 5400×3600×1800 | 2800×3200 | 2600×3000 |
| X-30 | 5400×3800×1800 | 2800×3200 | 2600×3000 |
| X-32 | 5400×4000×1800 | 2800×3200 | 2600×3000 |
Parameters
| Stitch Type: | Lockstitch | Stitch Length: | 2mm-6mm | Needle: | #14-#21 |
| Max. Quilting Weight: | 1200g/㎡ | Max. Quilting Thickness: | 50mm | Power: | 4kW |
| Max. Sewing Speed: | 3500RPM | Optional power supply: | Power: 1P 110V/50Hz, 1P 220V/50Hz, 3P 220V/50Hz, 3P 380V/50Hz | ||

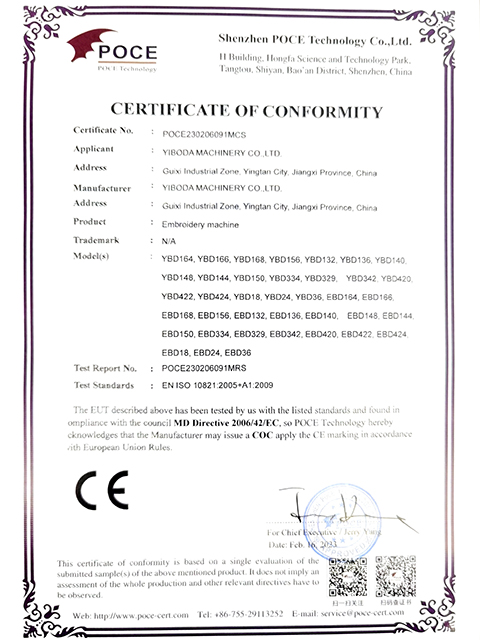

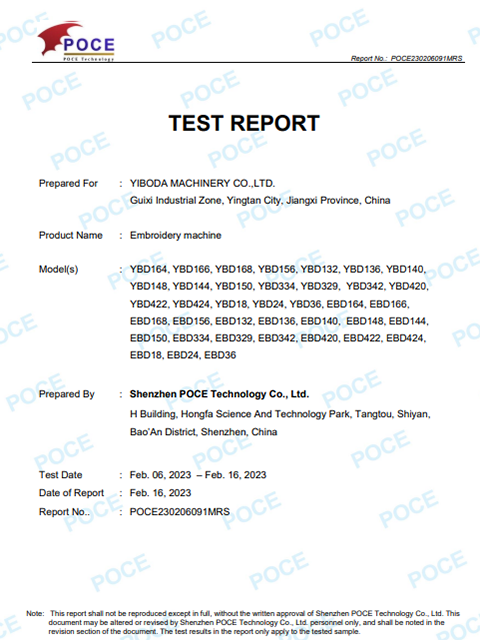

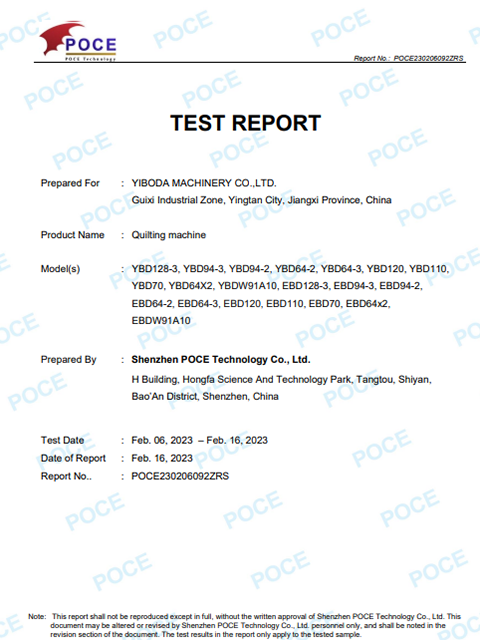

Certifications
 |  |  |  |
 | Company profile |
yiboda Industrial Co., Ltd. is a modern high-tech enterprise integrating product research and development, production, sales and service. Its leading products are EBD brand series of embroidery machines, quilting machines, computerized quilting embroidery machines, computer multi-needle quilting machines. , rotary hook multi-needle quilting machine, computer embroidery machine, automatic clothing template machine, single needle quilting machine. The company is headquartered in Dongguan, Guangdong Province, the first manufacturing city in China. The production base is located in Yingtan City, Jiangxi Province, China. After years of hard work, development and innovation, the company has established a successful operation and management of the decision-making team and a variety of professional and technical personnel and manufacturing experience, and established a quilting machine, quilting machine, rotary quilting machine and embroidery machine. The design, manufacturing, quality control, and after-sales service are the complete set of perfect systems. With perfect management, leading technology and advanced equipment support, our series of products are characterized by complete functions, stable operation, reliable performance and convenient operation, which are well received by domestic and foreign customers. Companies adhering to the "professional, innovative, development, service" spirit, provide users with comprehensive after-sales service and technical support. Giving timely and thoughtful after-sales service |
 |  |  |
 |  |  |
