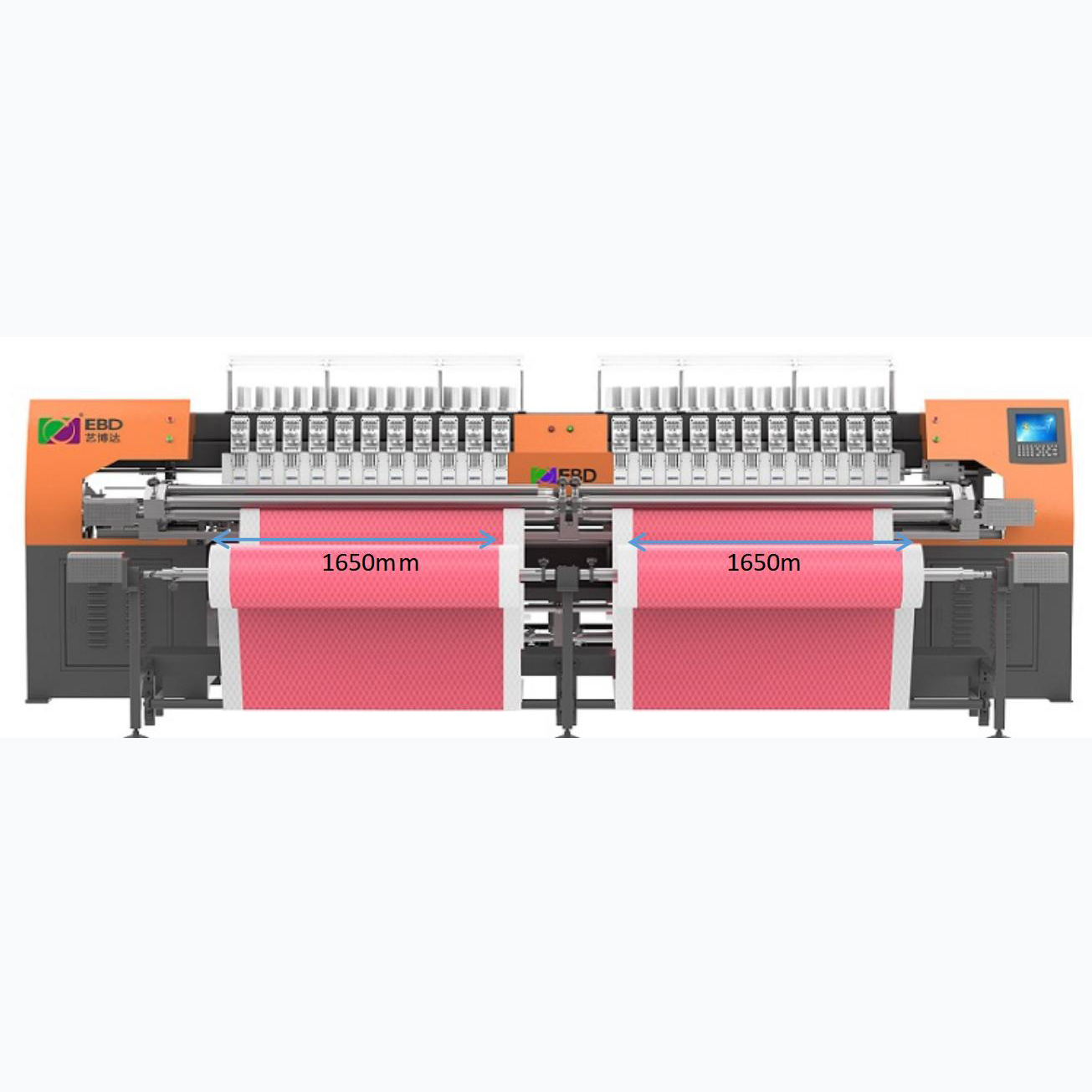

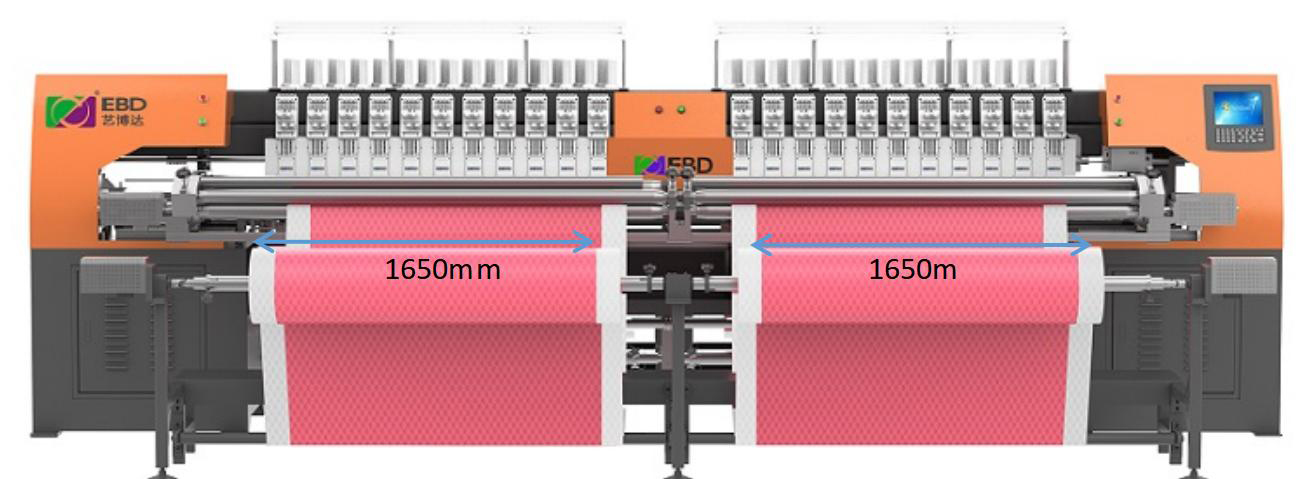

YBD422
EBD
| Product Model | YBD422(sectionalized) | YBD424(sectionalized) |
| Head Numbers /Thread colors | 22 heads/4colors | 24 heads/4colors |
| Needle Gap | 150mm | 150mm |
| Max travel in the X-axis direction | 304.8mm | 304.8mm |
| Working width | 1650mm*2 | 1800mm*2 |
| Stitch step | 2mm-12mm | 2mm-12mm |
| Speed | 800-1000 R.P.M | 800-1000 R.P.M |
| Automaticlly thread trimming/color changing | Automaticlly thread trimming/color changing | Automaticlly thread trimming/color changing |
| Needle size | 11*-18* | 11*-18* |
| Machine size | L5600*W1500*H1800(mm) | L5600*W1500*H1800(mm) |
Jumbo rotary hook for the bottom thread reduces a lot of times for changing the bobbins
Integrated structure machine frame makes sure the machine running stably with high speed
Quilting speed can maintain 1000RPM without decreasing
Synchronized driving structure roller system can guarantee the product quilting precision without adjusting the rollers while quiting the materials with various thicknesses
The unigue transmission structure ensures the stable working ofthe roller when the machine runs with high speed
Automatically thread trimming and color changing functions

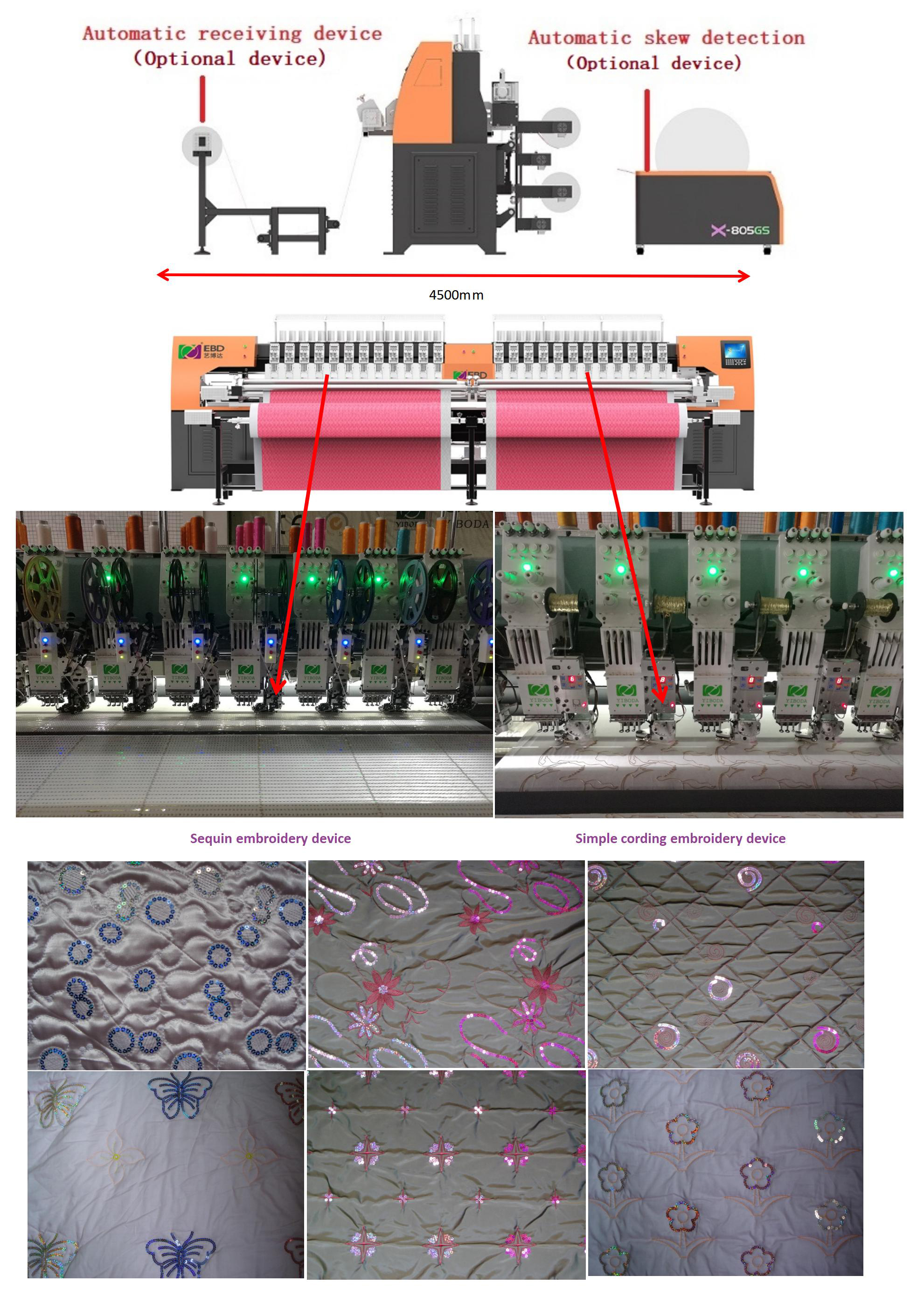

Note: Sequin fixing and rope belt embroidery devices are optional.7.Can customize according to customers' requirements (Sequin embroidery device、 simple cording embroidery device )
| Product Model | YBD422(sectionalized) | YBD424(sectionalized) |
| Head Numbers /Thread colors | 22 heads/4colors | 24 heads/4colors |
| Needle Gap | 150mm | 150mm |
| Max travel in the X-axis direction | 304.8mm | 304.8mm |
| Working width | 1650mm*2 | 1800mm*2 |
| Stitch step | 2mm-12mm | 2mm-12mm |
| Speed | 800-1000 R.P.M | 800-1000 R.P.M |
| Automaticlly thread trimming/color changing | Automaticlly thread trimming/color changing | Automaticlly thread trimming/color changing |
| Needle size | 11*-18* | 11*-18* |
| Machine size | L5600*W1500*H1800(mm) | L5600*W1500*H1800(mm) |
Jumbo rotary hook for the bottom thread reduces a lot of times for changing the bobbins
Integrated structure machine frame makes sure the machine running stably with high speed
Quilting speed can maintain 1000RPM without decreasing
Synchronized driving structure roller system can guarantee the product quilting precision without adjusting the rollers while quiting the materials with various thicknesses
The unigue transmission structure ensures the stable working ofthe roller when the machine runs with high speed
Automatically thread trimming and color changing functions
Note: Sequin fixing and rope belt embroidery devices are optional.7.Can customize according to customers' requirements (Sequin embroidery device、 simple cording embroidery device )
