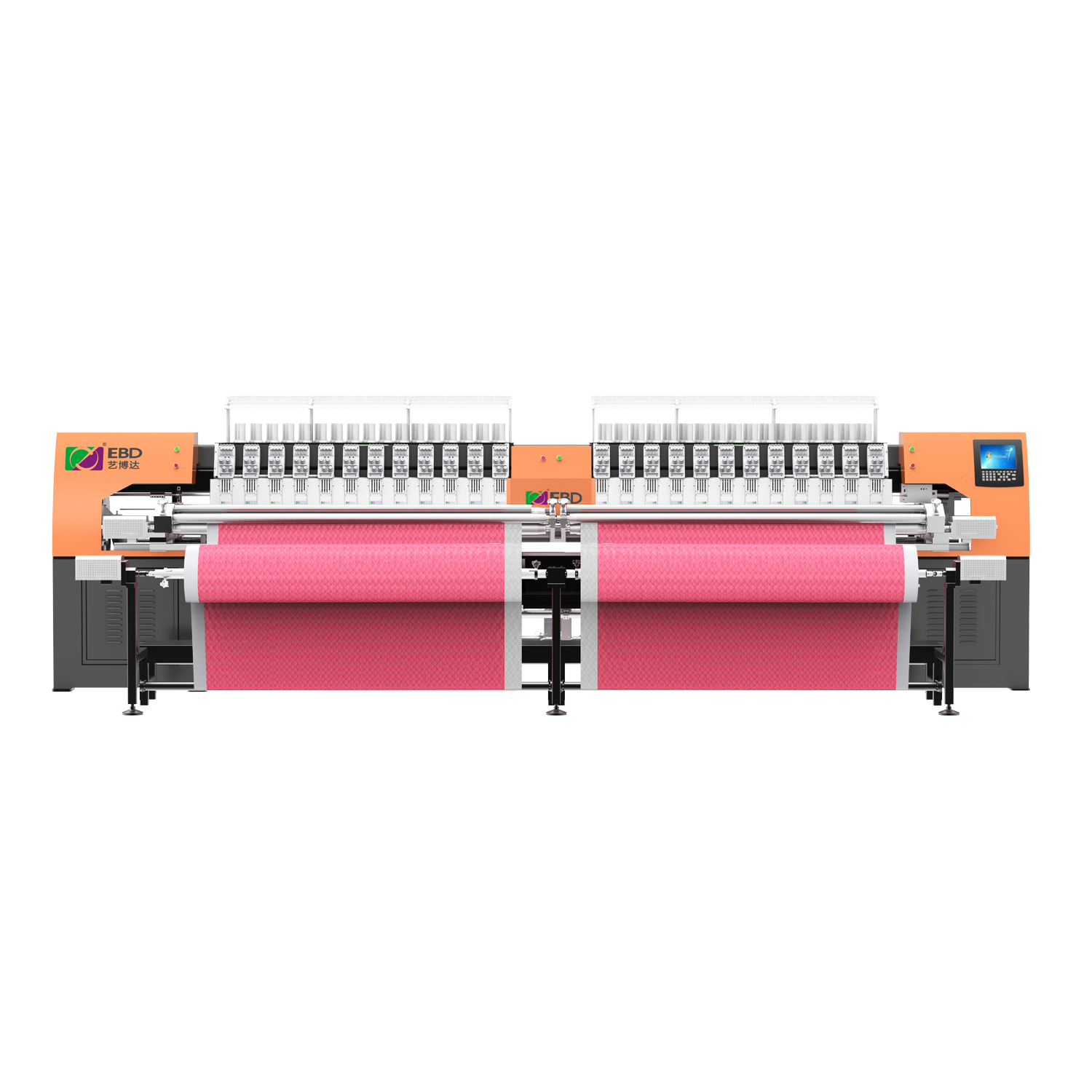

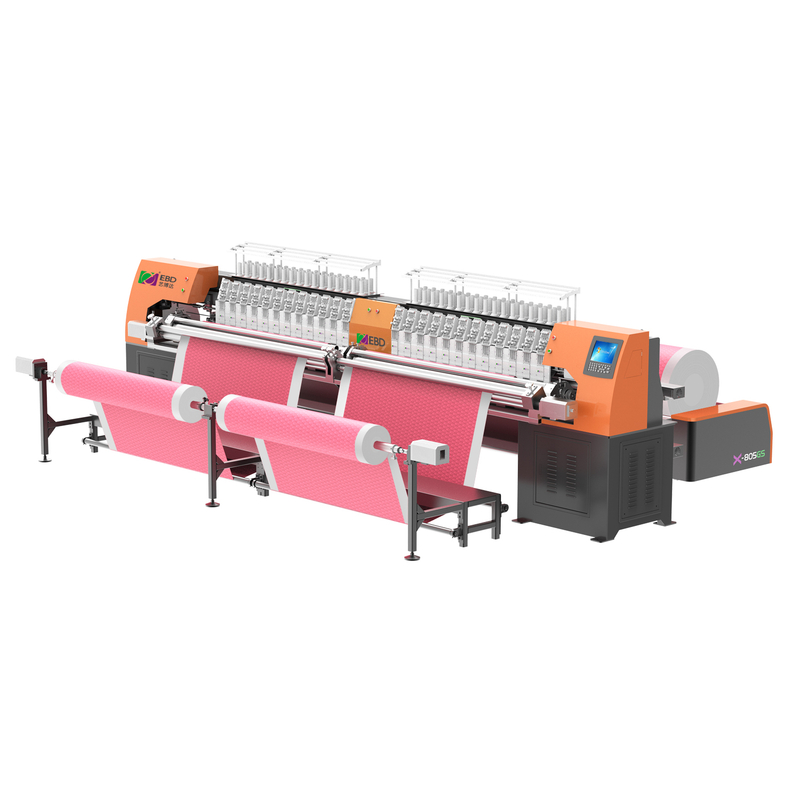

YBD422
yiboda
sequin embroidery
Simple cording embroidery device
Sequin embroidery device Simple cording embroidery device
Specifications/parameters
Product Model | YBD422（sectionalized） | YBD424（sectionalized） |
Head Numbers /Thread Colors | 22 heads/4 colors | 24heads/4 colors |
Needle Gap | 150mm | 150mm |
Maximum travel in the X-axis direction | 304.8mm | 304.8mm |
Working Width | 1650mmX2 | 1750mmX2 |
Sequin diameter | 3-9MM | 3-9MM |
Stitch Step | 2mm-12mm | 2mm-12mm |
Speed | 800-1000 R.P.M | 800-1000 R.P.M |
Automatically Thread Trimming/Color Changing | Automatic thread trimming and color changing function | Automatic thread trimming and color changing function |
Needle Size | 11*-18* | 11*-18* |
Voltage | AC220/380V.50Hz | AC220/380V.50Hz |
Power | 5KW | 5KW |
Machine Size | L5400*W1500*H1800(mm) | L5600*W1500*H1800(mm) |
1. Jumbo rotary hook for the bottom thread reduces a lot of times for changing the bobbins.
2. Integrated structure machine frame makes sure the machine running stably with high speed.
3. Quilting speed can maintain 1000RPM without decreasing
4. Synchronized driving structure roller system can guarantee the product quilting precision without adjusting the rollers while quilting the materials with various thicknesses
5. The unique transmission structure ensures the stable working of the roller when the machine runs with high speed.
6. Automatically thread trimming and color changing functions.
Note: Sequin fixing and rope belt embroidery devices are optional.
7.Can customize according to customers’ requirements （sequin embroidery、Simple cording embroidery device）
