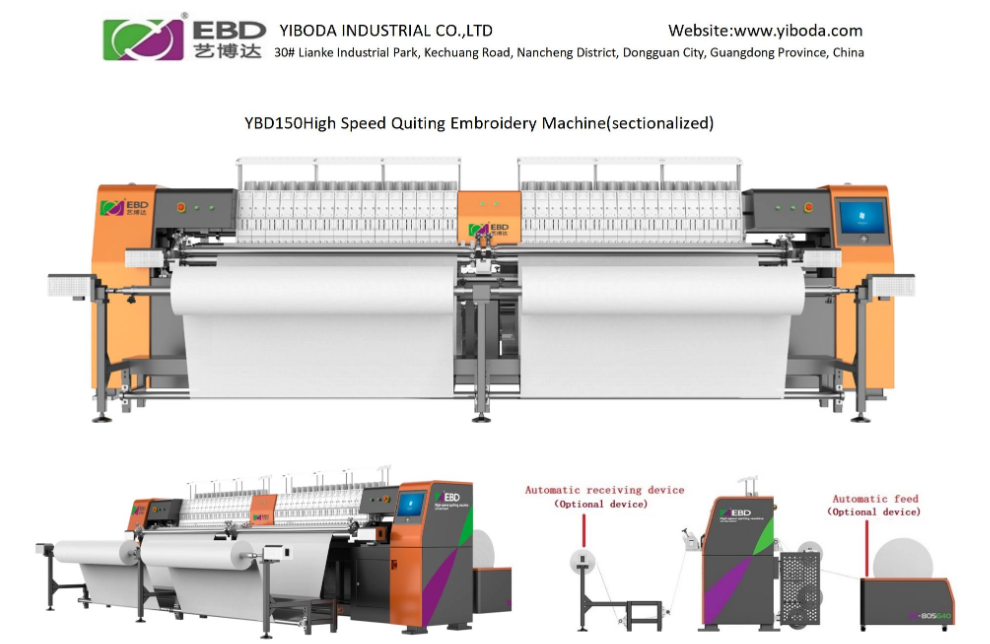

The 4th generation of YlBODA high speed quilting embroidery machine
1.First, the bottom line adopts large rotary shuttle to reduce the number of line changing.
2.Two, the frame adopts an integrated structure, to ensure the stable operation ofthe equipment at high speed.
3.X direction adopts linear guide rail, ball screw drive.
4. integratedpeed can maintain 800RPM without decreasing when stitch step is within 5mm,5. synchronized driving structure roler system can guarantee the product quiting precision without adjusting the rollers while quilting thematerials with various thicknesses
6. Unique driving structure can guarantee the rollers rolling smoothly and stably during machine running.7. 10 inches(Can customize 15inches) touch screen control system makes the machine operation easier and simpler.8. The screen can read and display the complete patterns, and the patterns can be edited on it9. Each page of the operating system is with help function, new operator can operate the machine in a shot time after reading the help pagesthat saves the staff training time.
10.Intelligent head lock embroidery function is optional.
11.Automatic winding and fabric feeding devices are optional.
Specifications/parameters
Product Model | YBD150 | Remarks |
Needle Numbers | 50 needles | |
Needle Gap | 67.5mm | |
Maximum travel in the X-axis direction | 254mm | |

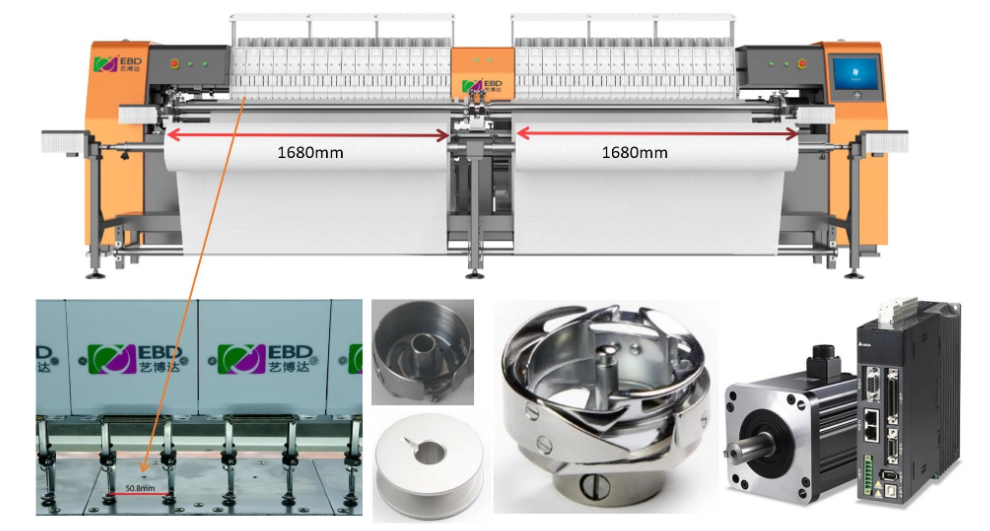

Working width | 1680mmX2 | The working width is the width of machine quilting but the width of fabric fed |
Stitch step | 2mm-12mm | |
Speed | 800-1000 R.P.M | |
Needle Size | 12*-18* | |
Machine Size | L5765*W1400*H1750(mm) | After removing the feeding bracket:L1156mm,H1567mm |
The needle gaps can be customized to be 50.8mm,76.2mm. |
