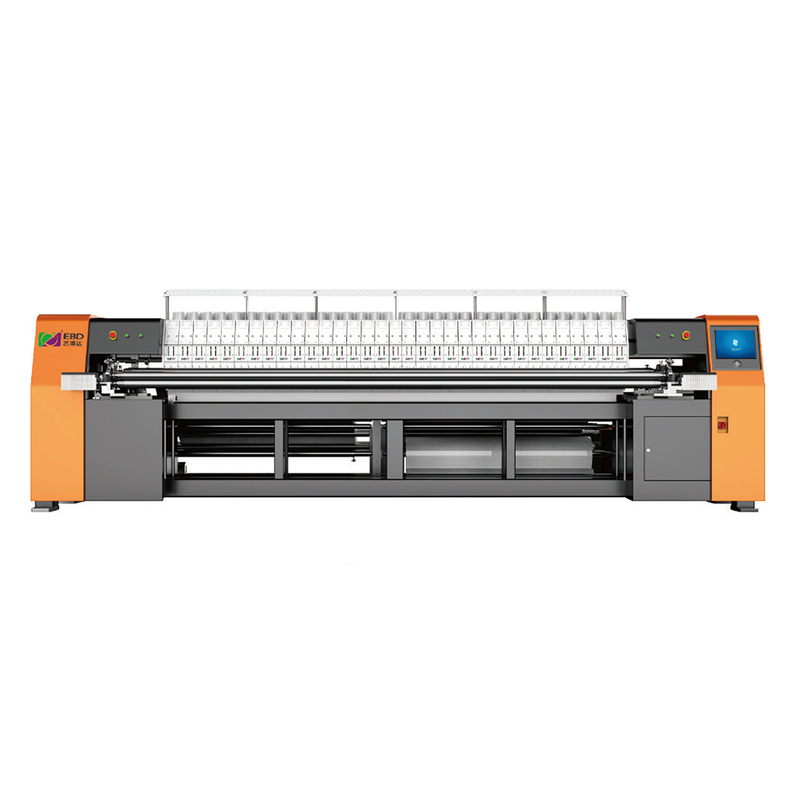

YBD166
EBD
Specifications/parameters
Product Model | YBD166 | Remarks |
Needle Numbers | 66 needles | |
Needle Gap | 50.8mm | |
Maximum travel in the X-axis direction | 304.mm | |
Working Width | 3350mm | |
Stitch Step | 2mm-12mm | |
Speed | 900-1000 R.P.M | |
Needle Size | 11*-18* | |
Voltage | AC220/380V.50Hz | Can customize according to different countries |
Power | 5.5KW | |
Machine Size | L5360*W1300*H1650(mm) | After removing the winder:L1156mm *H1567mm |
The needle gaps can be customized to be:67.5mm ,76.2mm. | ||
The 4th generation of YIBODA high speed quilting embroidery machine
1. Jumbo rotary hook for the bottom thread reduces a lot of times for changing the bobbins.
2. Integrated structure machine frame makes sure the machine running stably with high speed.
3. Quilting speed can maintain 1000RPM without decreasing when stitch step is within 5mm,
(Yiboda is the pioneer in this field).
4. Synchronized driving structure roller system can guarantee the product quilting precision without adjusting the rollers while quilting the materials with various thicknesses (Yiboda is the
pioneer in this field).
5. Unique driving structure can guarantee the rollers rolling smoothly and stably during machine running.
6. 10 inches(Can customize 15inches) touch screen control system makes the machine operation easier and simpler.
7. The screen can read and display the complete patterns, and the patterns can be edited on it (Yiboda is the pioneer in this field).
8. Each page of the operating system is with help function, new operator can operate the machine in a short time after reading the help pages that saves the staff training time .
