| Quantity: | |
|---|---|
YBD166
yiboda
Specifications/parameters
Product Model | YBD166 | Remarks |
Needle Numbers | 66 needles | |
Needle Gap | 50.8mm | |
Maximum travel in the X-axis direction | 304.mm | |
Working Width | 3350mm | |
Stitch Step | 2mm-12mm | |
Speed | 900-1000 R.P.M | |
Needle Size | 11*-18* | |
Voltage | AC220/380V.50Hz | Can customize according to different countries |
Power | 5.5KW | |
Machine Size | L5360*W1300*H1650(mm) | After removing the winder:L1156mm *H1567mm |
The needle gaps can be customized to be:67.5mm ,76.2mm. | ||
Features
1. Jumbo rotary hook for the bottom thread reduces a lot of times for changing the bobbins.
2. Integrated structure machine frame makes sure the machine running stably with high speed.
3. Quilting speed can maintain 1000RPM without decreasing when stitch step is within 5mm,
(Yiboda is the pioneer in this field).
4. Synchronized driving structure roller system can guarantee the product quilting precision without adjusting the rollers while quilting the materials with various thicknesses (Yiboda is the
pioneer in this field).
5. Unique driving structure can guarantee the rollers rolling smoothly and stably during machine running.
6. 10 inches(Can customize 15inches) touch screen control system makes the machine operation easier and simpler.
7. The screen can read and display the complete patterns, and the patterns can be edited on it (Yiboda is the pioneer in this field).
8. Each page of the operating system is with help function, new operator can operate the machine in a short time after reading the help pages that saves the staff training time .

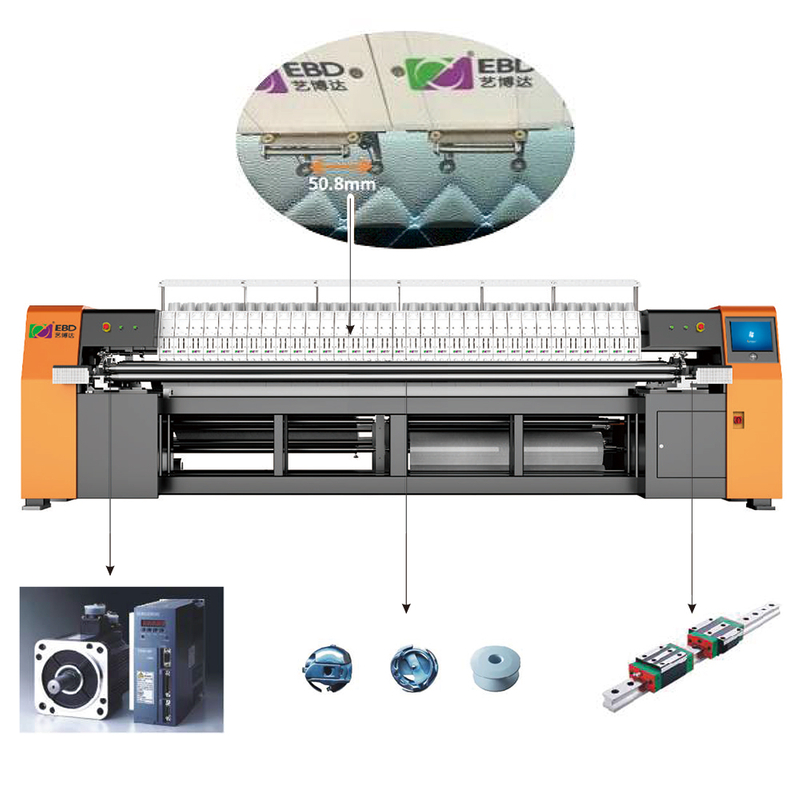

Product diagram
Application Range
Garment, home textile, decorative products, furniture, hang bag, car seat cover, shoes and so on.
Certifications
 |  |  |  |
 | Company profile |
yiboda Industrial Co., Ltd. is a modern high-tech enterprise integrating product research and development, production, sales and service. Its leading products are EBD brand series of embroidery machines, quilting machines, computerized quilting embroidery machines, computer multi-needle quilting machines. , rotary hook multi-needle quilting machine, computer embroidery machine, automatic clothing template machine, single needle quilting machine. The company is headquartered in Dongguan, Guangdong Province, the first manufacturing city in China. The production base is located in Yingtan City, Jiangxi Province, China. After years of hard work, development and innovation, the company has established a successful operation and management of the decision-making team and a variety of professional and technical personnel and manufacturing experience, and established a quilting machine, quilting machine, rotary quilting machine and embroidery machine. The design, manufacturing, quality control, and after-sales service are the complete set of perfect systems. With perfect management, leading technology and advanced equipment support, our series of products are characterized by complete functions, stable operation, reliable performance and convenient operation, which are well received by domestic and foreign customers. Companies adhering to the "professional, innovative, development, service" spirit, provide users with comprehensive after-sales service and technical support. Giving timely and thoughtful after-sales service |
 |  |  |
 |  |  |
