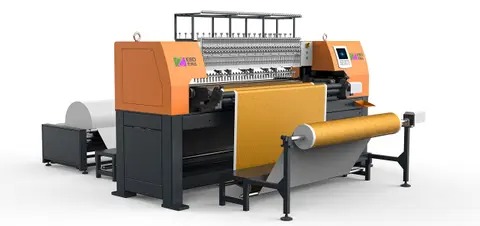

A Rotary Hook Quilting Machine is a specialized piece of textile machinery used primarily in the production of quilted textiles, such as mattress covers, bedspreads, and home decor items. Unlike traditional quilting machines, which may rely on reciprocating hooks or other stitching mechanisms, the rotary hook system offers continuous and smoother stitching, resulting in higher efficiency and superior stitch quality. The rotary hook mechanism works by rotating 360 degrees around the bobbin, ensuring consistent thread tension and reduced thread breakage. This technical innovation plays a pivotal role in large-scale quilting operations, where reliability and speed are crucial.
Rotary hook quilting machines are engineered to perform intricate stitching patterns with high precision, whether for aesthetic or structural purposes. Due to their reliability and high-speed operation, they are commonly used in industrial settings where mass production of quilts and padded materials is required. This article explores the detailed functionality, technical advantages, and commercial applications of the rotary hook quilting machine. By the end, you'll understand why this equipment has become the gold standard in modern quilting processes.
At the heart of the rotary hook quilting machine is the rotary hook mechanism. This component replaces the older oscillating hook system, which could only move back and forth to catch the top thread. The rotary hook, on the other hand, rotates continuously around the bobbin case. As the needle descends, it pushes the upper thread down to form a loop. The rotary hook then catches this loop and wraps it around the bobbin thread, completing a secure stitch.
This continuous motion offers several operational benefits. First, it minimizes vibration and mechanical wear, as the components are in perpetual, balanced motion. Second, the rotary system allows for higher stitching speeds, often exceeding 1200 stitches per minute. This increase in productivity makes it ideal for commercial quilting applications where time efficiency is crucial.
Additionally, the rotary hook design contributes to superior thread tension control. Uneven tension is a common issue in traditional quilting machines, resulting in skipped stitches or thread breakage. With rotary hooks, the tension remains consistent, ensuring clean and professional stitch quality throughout the quilting process.
When investing in a rotary hook quilting machine, it’s important to consider the features that make this technology unique and beneficial. These machines come with a host of advanced capabilities that support both aesthetic and functional quilting. Below are some of the most critical features:
Rotary hook systems enable faster stitching rates, allowing machines to run continuously at high speeds without sacrificing stitch quality. This makes them perfect for industrial-scale operations where output volume is essential.
Advanced quilting machines equipped with rotary hooks support multiple stitching patterns, including linear, geometric, and custom-designed motifs. Some machines even include computerized pattern selection for rapid design changes.
The continuous motion of the rotary hook reduces mechanical stress and wear on components, leading to lower maintenance costs over time. Parts such as the hook and race are also easier to clean and replace.
By maintaining consistent thread tension and ensuring precise loop formation, the rotary hook system delivers tight, uniform stitches across various fabric thicknesses and types.
Rotary hook quilting machines can work seamlessly with a wide range of textiles including cotton, polyester, velvet, and blended fabrics. This versatility is essential in industries producing diverse textile products.
The rotary hook quilting machine is widely utilized across different sectors, thanks to its reliability and high performance. Below are some common commercial and industrial applications:
Manufacturers of comforters, bedspreads, pillow covers, and mattress protectors rely heavily on rotary hook quilting machines. The ability to produce decorative yet durable stitching patterns enhances both product quality and customer satisfaction.
While quilting is not as common in mainstream apparel, specialty garments such as jackets, thermal wear, and padded uniforms use quilted materials for insulation. Rotary hook machines ensure clean seams that hold insulation layers in place.
In automotive manufacturing, quilted seat covers and interior linings offer luxury and comfort. The consistent and reliable stitching from rotary hook machines ensures these materials meet high-quality standards.
Quilted fabrics are used in sofas, chairs, and other furniture pieces. The rotary hook mechanism provides the strength and consistency needed for such heavy-duty applications.
Here is a sample table of technical specifications commonly found in rotary hook quilting machines:
| Specification | Detail |
|---|---|
| Stitching Speed | 600 - 1200 stitches/min |
| Quilting Width | Up to 3000 mm |
| Max Pattern Size | 360 mm × 360 mm |
| Needle Type | DPx5 or 135x17 |
| Hook Type | Rotary Hook, Large Capacity |
| Drive System | Servo Motor with Gear Drive |
| Control System | PLC with Touch Screen Interface |
| Fabric Compatibility | Cotton, Polyester, Blends, etc. |
One of the primary advantages of the rotary hook quilting machine lies in its operational superiority over traditional oscillating hook systems. These advantages include:
Increased Efficiency: Continuous rotation allows for higher throughput without compromising quality.
Improved Stitch Reliability: Uniform stitch formation ensures strong, long-lasting seams.
Lower Downtime: Reduced mechanical friction translates to less frequent breakdowns and minimal servicing.
Ease of Use: Many machines feature touch-screen interfaces and automated tension controls, making them user-friendly even for less experienced operators.
Energy Efficiency: Modern machines are designed to consume less energy per operation cycle, helping manufacturers reduce operational costs.
These advantages make the rotary hook system the preferred choice for companies aiming to scale production while maintaining high standards of craftsmanship.
The rotary hook system rotates in a full 360-degree motion, which ensures consistent thread pickup and smooth loop formation. In contrast, the oscillating hook has a back-and-forth motion, which can lead to irregular tension and skipped stitches at high speeds.
Yes. These machines are designed to stitch through multiple fabric layers, including those with batting or foam inserts, without losing stitch integrity.
Most modern machines come with a computer interface that allows for quick pattern changes. Users can upload custom designs or select from pre-installed templates, making the machine highly versatile.
Regular cleaning, proper lubrication, and occasional inspection for thread debris are usually sufficient. The parts are designed for durability and are generally easy to replace if needed.
Industries such as home textiles, garments, automotive, and furniture manufacturing gain the most from rotary hook machines due to their speed, reliability, and ability to handle various fabric types.
The rotary hook quilting machine is an indispensable tool for any business involved in textile manufacturing or quilted product production. Its advanced mechanics, high-speed capability, and superior stitch consistency make it ideal for both mass production and high-precision applications. Whether you are a textile manufacturer, a furniture company, or part of the automotive industry, this machine can drastically improve your production efficiency and product quality.
